How to Reduce Fan Noise by 60% and Achieve Level 1 Energy Efficiency with a Custom BLDC Fan PCB

Client Background & Challenges

Our client is a leading consumer electronics brand focused on high-end smart home appliances. When developing their new generation of premium bedroom and study fans, they encountered significant technical bottlenecks. Most common fan control boards on the market use traditional AC motors or square-wave BLDC control modes, which led to three major issues:

• High Noise Levels: The commutation noise from traditional square-wave drives made it impossible to achieve a truly quiet environment, leading to increased after-sales complaints.

• High Energy Consumption: The outdated systems could not meet the strict requirements for Level 1 energy efficiency certification.

• Poor Low-Speed Stability: At low speeds, the motors exhibited noticeable jerking, failing to deliver the gentle "natural wind" experience expected by premium consumers.
•

The Ruichun Solution:

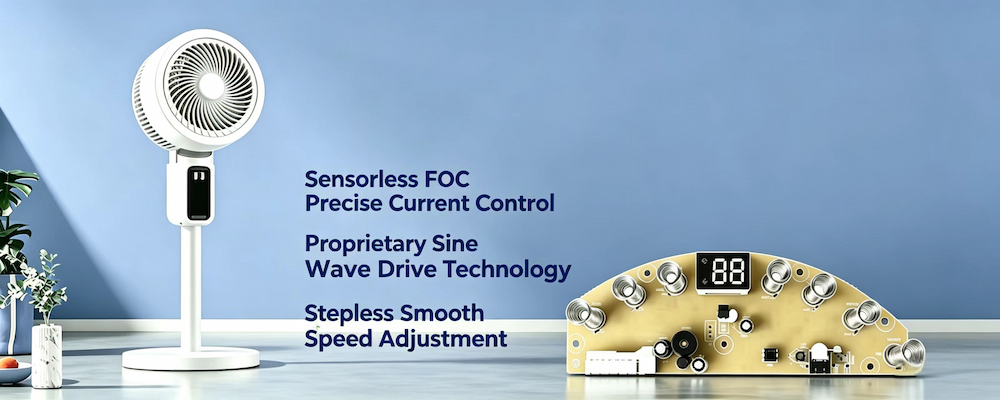

To address these critical pain points, Ruichun engineered a highly optimized sensorless FOC+BLDC fan control board  upgrading the client's product from the ground up:

• Sensorless FOC Precise Current Control: We developed a Custom BLDC Fan PCB equipped with advanced Field-Oriented Control (FOC). This precision current control significantly optimizes energy conversion, Easily overcomes the low efficiency of traditional AC motors.

• Proprietary Sine Wave Drive Technology: To eliminate mechanical and electromagnetic noise, our engineers integrated seamless FOC sine wave drive technology into the Electric Fan Circuit Board, completely eliminating traditional commutation noise.

• Stepless Smooth Speed Adjustment: We implemented a 1-10 continuously adjustable speed control architecture, ensuring smooth transitions and absolute stability even at the lowest speeds.

Results & Market Impact

By integrating Ruichun's advanced motor control technology, the client's new fan series achieved breakthrough performance in laboratory tests and market feedback:

• 60% Noise Reduction: Actual testing shows noise levels are over 60% lower than traditional square-wave solutions. The fan operates with virtually no sound in sleep mode, perfectly suited for quiet use in bedrooms and studies.

• Ultimate Wind Sensation: The complete elimination of low-speed jerking perfectly realized advanced wind sensations such as "natural wind" and "sleep wind," significantly boosting the product's market premium.

"When traditional advantages faced technological disruption, we were once caught in the "innovator's dilemma." Ruichun Technology not only provided us with technological solutions, but also brought about a profound transformation in our "product philosophy"

— Dr. Michael Schneider, General Manager of AH
